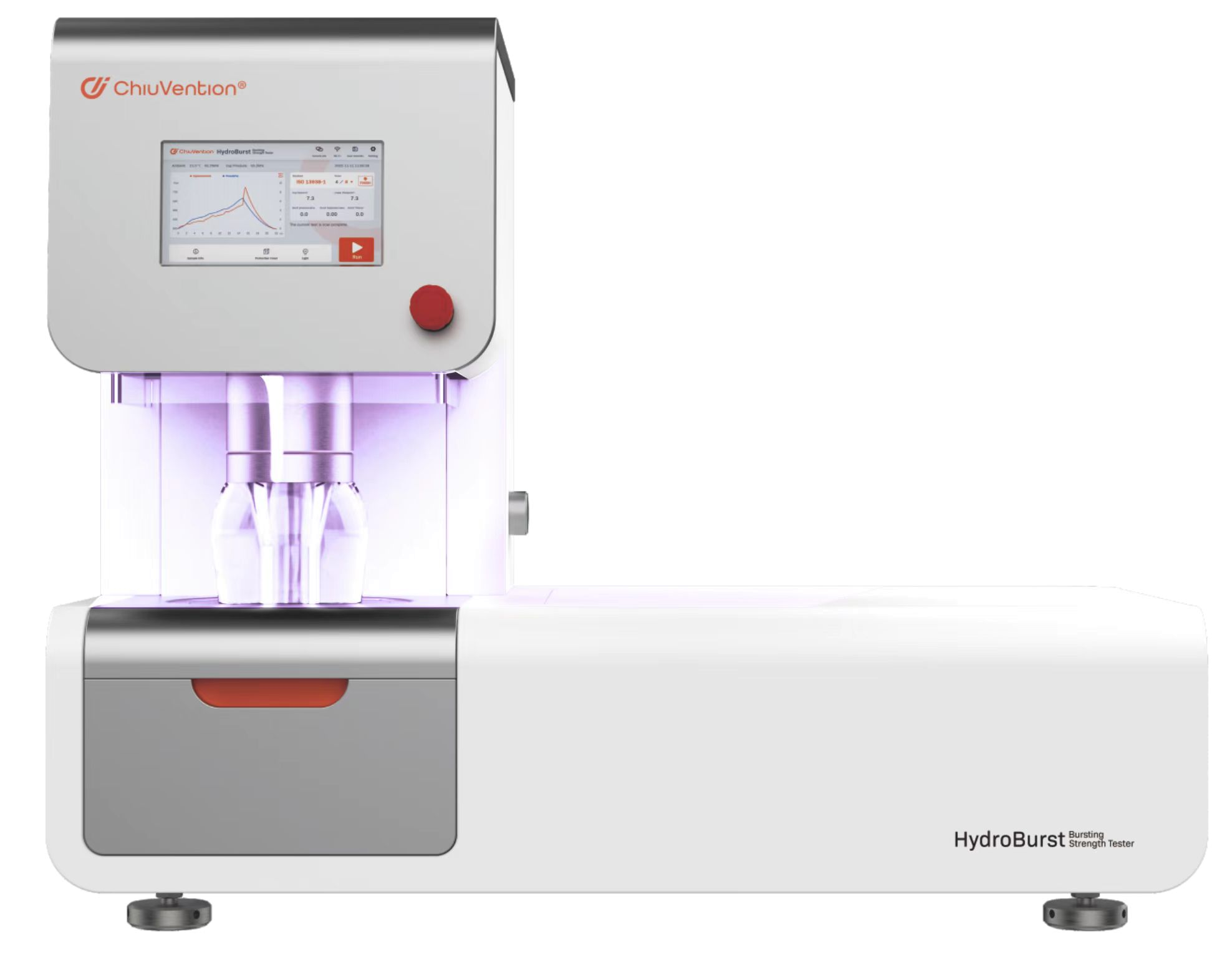

Bursting Strength Tester | A smart instrument developed by the sister company ChiuVention.
The HydroBurst Burst Strength Tester utilizes hydraulic bursting (diaphragm method) to determine the burst strength and expansion of knitted fabric, woven fabric, non-woven fabric, laminated fabric, elastic woven fabric, paper, and other materials when subjected to stress in both warp and weft directions, as well as in all other directions, to get the material’s burst strength.
It is also called a BS tester or Mullen Burst Tester. The HydroBurst Burst Strength Tester is widely used for fabric or paper burst tests.TESTEX is a professional Burst Strength Tester manufacturer.
We provide you with hydraulic bursting strength testers but also pneumatic bursting strength testers. Our Digital Bursting Strength Tester complies with many bursting strength test standards, such as GB∕T7742.1-2005, ISO13938-1-2019, ASTM D3786/D3786M-18, etc.
Description
Features of Bursting Strength Tester Machine
Smart instrument
The Burst Tester can connect to a mobile phone, enabling remote control and monitoring of the testing status. You can access the burst strength test results and print them as needed. The bursting tester also provides reminders for equipment warnings. Furthermore, this BS tester allows for one-click sharing of the testing status.
Smooth operation, precise, and durable.
The Burst Tester features a hydraulic system with complete servo control and a precise screw drive. These attributes ensure smooth, durable, and quiet operation, making it a high-quality burst strength tester.
High-precision testing
The BS Tester is designed to measure pressure and features a high-precision pressure sensor. This bursting strength machine’s sensor offers an accuracy of 0.2%, which means the burst test error is 0.2% of the maximum range.
Longer service life of sensors.
The Mullen Burst Tester features Panasonic laser displacement sensors without rods, making it easy to replace testing cups. This design protects the sensors and minimizes the risk of damage compared to traditional rod-type sensors.
Automatic testing improves efficiency.
During the burst strength test, the protective cover automatically lowers to press the BS tester cup for evaluation. Once the test is complete, the machine automatically raises the testing cup, and the protective cover ascends as well. This entire burst test process is automated, requiring no manual operation, which enhances work efficiency and minimizes risks.
A smart identification system for testing cups.
When replacing the BS testing cup, the system can recognize the current cup model and adjust the testing settings accordingly. This enhancement significantly boosts work efficiency. Additionally, the HydroBurst BS Tester features a steel plate shell with an electrostatic spray finish, giving it an appealing appearance. Internally, this fabric bursting strength tester is constructed mainly from high-quality, lightweight aluminum, which substantially reduces the overall weight of the machine.
Application of Bursting Strength Tester
Bursting Strength Tester is applicable for truck covers, trampoline fabrics, swimming pool covers, compactor curtains, agricultural bagging applications, etc. We should test the above textiles using a burst tester to ensure the burst strength meets the specified requirements.
The HydroBurst Digital Bursting Strength Tester is a hydraulic type, that provides a digital pressure value with a peak hold facility and renewable rubber diaphragms. In addition, an automatic clamping device with a clear acrylic bell and an LED lamp is equipped for easy observation. It is easy for users to burst the strength of the fabric and the burst strength of paper. We also provide Pneumatic Bursting Strength Tester.
Customer Feedback of Bursting Strength Testing Machine
“We have been purchasing textile test instruments from top brands, and we found ChiuVention is a very trustworthy brand, with the same quality as the top brands and at a reasonable price; The HydroBurst has been running very stably since we have been using it.”
“ChiuVention has an agent in Indonesia, which is more convenient for after-sales service for us. And the most important point is this HydroBurst meets the requirements in all aspects and cost-effective.”
Specifications of Bursting Strength Tester
Model No. 1. CV.142.01 CV142 HydroBurst Bursting Strength Tester
Testing mode: fixed-speed bursting, fixed-pressure bursting, fixed-expansion bursting, and fixed-time bursting.
Measurement range:
0-10 MPa ±1% ( with test cup ≤ 10cm²)
0-3 MPa ±1% ( with test cup = 50cm² )
0-1 MPa ±1% ( with test cup = 100cm²)
Testing rate: 50-500 ml/min.
Hydraulic medium: 7.HY.004 glycerin 500ml/1 pc

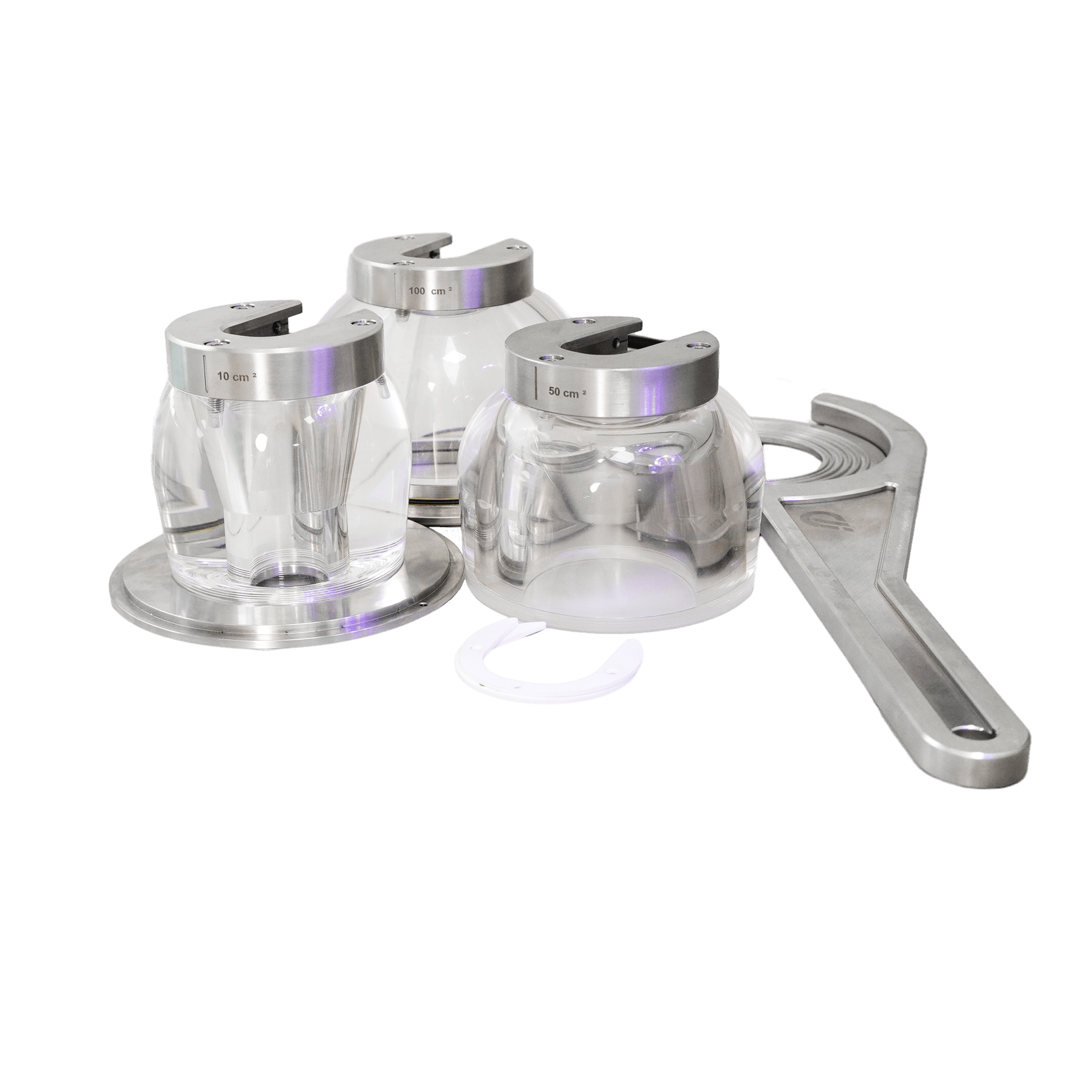

Test cup mode、Fixture mode and related dimensions
Test Cup 1（Standard） 2.Z.CV.142.01 7.3cm²（Dia.30.5mm±0.2mm）
Lower fixture base 1（Standard） 2.Z.CV.142.11 7.3cm²（Dia.30.5mm±0.2mm）
Test Cup 2 (Optional) 2.Z.CV.142.02 7.55cm² （Dia. 31mm±0.2mm）
Lower fixture base 2（Optional） 2.Z.CV.142.12 7.55cm² （Dia. 31mm±0.2mm）
Test Cup 4 (Optional) 2.Z.CV.142.04 10cm² （Dia. 35.7mm±0.2mm）
Lower fixture base 4（Optional） 2.Z.CV.142.14 10cm² （Dia. 35.7mm±0.2mm）
Test Cup 5 (Optional) 2.Z.CV.142.05 50cm² （Dia. 79.8mm±0.2mm
Lower fixture base 5（Optional） 2.Z.CV.142.15 50cm² （Dia. 79.8mm±0.2mm）
Test Cup 6(Optional) 2.Z.CV.142.06 100cm² （Dia. 113 mm±0.2mm）
Lower fixture base 6（Optional） 2.Z.CV.142.16 100cm² （Dia. 113 mm±0.2mm）
Test diaphragm (optional) 4.M.020 Dia. 148 mm * 1.6 mm (10pcs/box)
Maximum expansion height: 65 mm ±1 mm（with a test cup of 50cm² also can be used for 70mm ± 1mm).
Operating environment: temperature: 20°C ±5°C, humidity: 50%~70%.
Installation conditions: air supply pressure of 5~8 bar
(ensure that the air is clean and dry).
Power 220V 5A / 110V 10A 50/60Hz
Weight 130kg
Dimension 830*500*660mm （L*W*H）
Standards of HydroBurst Burst Strength Tester
FZ/T 01030-2016 Method B
GB∕T 7742.1-2005
ISO 13938-1-2019
ASTM D3786/D3786M-18（2023）
EN 12332-2-2002
| Standard / Specification | FZ/T01030-2016 Method B | GB∕T7742.1-2005 | ISO13938-1-2019 | ASTMD3786/3786M-18(2023) | EN 12332-2-2002 | |
| Test Fixture | 7.3cm2 （φ30.5mm） | √ | √ | √ | √ | – |
| 7.55cm2 （φ31±0.75mm） | – | – | – | √ | – | |
| 1Ocm2 (φ35.7±0.5mm) | – | √ | √ | – | √ | |
| 50cm2 (φ79.8mm) | – | √ | √ | – | – | |
| 100cm2 (φ113±1mm) | – | √ | √ | – | √ | |
Test Principle of Bursting Strength Tester
Our Fabric Bursting Strength Tester operates by securely fixing the fabric specimen onto a deformable film. The Digital Bursting Strength Tester then applies hydraulic pressure to the film, causing the fabric to expand until it bursts. The Bursting Strength Apparatus calculates the fabric’s expansion strength by measuring the difference between the total pressure required to burst the sample and the pressure needed solely to deform the film. This reliable and precise method ensures accurate assessment of fabric durability and expansion strength, making our tester ideal for professional textile testing applications.
Significance of the bursting strength test of fabric
Tensile strength testing is not as relevant for certain fabrics, such as knitted materials and lace, where bursting strength testing can be more appropriate. When a fabric fails, it typically experiences pressure in the warp, weft, and diagonal directions. For instance, some knitted fabrics, like weft knitted types, stretch in a linear direction while contracting transversely, with these two directions influencing one another. In tensile strength testing, it is necessary to evaluate the warp, weft, and diagonal directions individually, whereas bursting strength testing provides a comprehensive assessment of the fabric’s overall strength in a single evaluation.
Welcome to TESTEX – a professional bursting strength tester manufacturer -The Burst Testing Machine is on sale, contact us for a bursting strength tester price. We provide you with a reasonable hydraulic bursting strength tester. Besides, you can get knowledge of the burst strength of the fabric, paper, carton, etc. burst strength tester, and bursting strength tester pdf by visiting our blog.
15 reviews for Bursting Strength Tester | A smart instrument developed by the sister company ChiuVention.
You must be logged in to post a review.
Terminology and definitions
Test area: refers to the area of the specimen in the ring gripper.
Bursting pressure or named pressure at burst: the maximum pressure applied to the specimen held together with the lower gasket diaphragm until the specimen bursts.
Bursting strength, also called strength at burst: the pressure obtained by subtracting the diaphragm pressure from the average bursting pressure.
Diaphragm pressure: the pressure applied to a diaphragm to achieve the average bursting expansion of a specimen in the absence of a specimen.
Bursting distension also named distension at burst: the degree of expansion of the specimen under the bursting pressure, shown in the form of the bursting height or bursting volume.
Height at burst: the distance between the upper surface of the specimen before expansion and the top of the specimen at the bursting pressure.
volume at burst: the required liquid volume when it reaches the bursting pressure.
time to burst: the time when the fabric sample expands to burst out
Test principle
The specimen is clamped on the extendable diaphragm under which liquid pressure is applied so as to expand the diaphragm and the specimen. The volume of liquid will be increased at a constant rate until the specimen ruptures, and the bursting strength and bursting expansion can be measured.
The sampling
The sample should be taken in accordance with the standard of products or the relevant agreement. Folds, creases, fabric edges, or areas that are not representative of the fabric are not allowed to appear on the surface of the sample. The test can be carried out by working the clamping system without the requirement of cutting the sample generally.
Test procedure
Before the test, the sample should undergo conditioning in a relaxed state in accordance with related standards. During the test, keep the specimen in the specified conditioning and the atmosphere needed for the test.
Note 1: The test area should be 50c㎡ for most fabrics, especially knitted fabrics. However, the test area should be at least 100c㎡ for the fabric with low elongation based on the experience and pre-testing, such as the industrial fabrics.
Note 2: The comparative experiment should be carried out at the same increasing rate of the test area and the volume.
Set a constant volume growth rate at between 100 cm3/min and 500 cm㎡3/mimin. Or conduct a pre-test and adjust the bursting time of the test to 20s±5s.
Place the specimen on the diaphragm in a flat and tension-free state to avoid deformation in its plane. Clamp the specimen with the clamping ring to avoid damage and prevent it from slipping during the test. Adjust the dilatancy recording device to zero and tighten the safety cover according to the requirements of the instrument. Apply pressure to the specimen until it is destroyed.
Immediately reset the instrument after the destruction of the specimen, and then record the bursting pressure, bursting height or bursting volume. If the damaged area of the specimen is close to the edge of the clamping ring, the fact should be recorded.
Next repeat the test on different parts of the fabric. At least 5 test samples should be taken. If the buyer and seller make a consensus, the test sample can be increased.
Determination of Diaphragm Pressure
The diaphragm keeps expanding until it reaches the average bursting height or volume under the above-mentioned experimental condition.
Wetting test
In the wetting test, specimens should be impregnated in the water at third level with a temperature of 18 or 22℃. Take the specimen from the liquid and use the absorbent paper to absorb excess water.
Test report
In a test report, it is a must to display the general content and test result.
General content
a) The number
b) Description of the specimen and sampling procedure (if required);
c) Model number of the expander.
d) Test area.
e) The rate of volume growth or swelling and breaking time.
f) The number of specimens, the damaged gripper, and discarded tests
g) The observation of swelling performance (e.g., one or two yarn directional damage)
h) The state of the specimen (conditioning or wet state)
i) Any deviation of the data.
Test results
a) Average swelling strength
b) Average swelling height.
c) Average swelling volume (if required).
d) Related coefficient of variation CV values (if in need);
e) Associated confidence intervals (if needed).
A: Test Principles:
Tensile Strength Test: The specimen is clamped in a circular fixture on a fixed base. A spherical plunger moves vertically at a constant speed, pushing the specimen until it ruptures. The force required to break the specimen is measured as the ball burst strength.
Bursting Strength Test: The specimen is clamped onto a stretchable diaphragm, and liquid pressure is applied beneath the diaphragm, causing both the diaphragm and the specimen to expand. The volume of liquid is increased at a constant rate until the specimen ruptures, allowing the measurement of bursting strength and bursting expansion.
Test Instruments:
Tensile Strength: Fabric Tensile Strength Tester
Bursting Strength: Hydraulic Bursting Strength Tester or Pneumatic Bursting Strength Tester.
Q: What types of materials are Hydraulic and Pneumatic Bursting Strength testers best for?
Hydraulic: Suitable for heavy-duty fabrics like leather, technical textiles, or geotextiles.
Pneumatic: Ideal for lightweight fabrics like knits or woven textiles.
Q: What are the Differences Between Hydraulic and Pneumatic Bursting Strength Tests?
A: Pressure Medium:
Hydraulic Bursting Strength Tester: Uses liquids (such as water or oil) as the pressure medium.
Pneumatic Bursting Strength Tester: Uses air as the pressure medium.
Pressure Application:
Hydraulic Burst Testing: Provides more stable pressure, suitable for precise testing.
Pneumatic Burst Testing: Applies pressure more quickly, suitable for rapid testing.
Application Range:
Hydraulic Burst Testing: Commonly used for heavy coated fabrics, such as outdoor gear, tents, and waterproof materials.
Pneumatic Burst Testing: Used for lightweight, breathable fabrics, such as sportswear, underwear, and medical textiles.
Equipment Cost:
Hydraulic Burst Testing Machine: More complex and costly.
Pneumatic Burst Testing Machine: Simpler and generally lower in cost.
Q: What factors affect the results of fabric burs strength tests?
A: Fabric thickness, fiber composition, weaving process, moisture content, and test conditions—such as temperature and humidity—each play a significant role in influencing the results.
Q: What issues can arise from using non-standard sample specifications? What are the sampling requirements for different standards?
A: Yes, using non-standard sample specifications can lead to issues. If the sample dimensions, thickness, or cutting do not meet the standard requirements, the test results may be inconsistent. It is essential to ensure that the sample specifications comply with the standards.
GB/T 7742.1—2005: Sample diameter of 30-50 mm, with at least 5 samples.
ASTM D3786/D3786M:2013: Sample diameter of 30-40 mm, with 5-10 samples.
ISO 13938-1:2019: Sample diameter of 50 mm, with at least 5 samples.
Q: Does aging or damage of the test membrane affect the test results?
A: Yes, aging or damaged test membranes cannot distribute pressure evenly, which may lead to inaccurate burst strength test results. The test membrane should be replaced regularly.
Q: Is it necessary to use a Mullen Bursting Tester to measure Mullen Bursting Strength?
A: Yes, using a Mullen Bursting Tester is essential for accurately measuring Mullen Bursting Strength. This tester is specifically designed to apply controlled hydraulic pressure to a material until it bursts, yielding precise data on the force needed for rupture. Without a Mullen Bursting Tester, consistently and reliably measuring the bursting strength of materials would be challenging, making it a crucial tool in industries such as textiles, paper, and packaging.
Q: What factors affect the burst strength of paper?
A: The burst strength of paper is influenced by factors such as fiber composition, density, moisture content, thickness, calendering, additives, and the manufacturing process. Stronger fibers, higher density, and optimal moisture levels increase burst strength, while thicker paper, calendering, and coatings further enhance durability. Variations in production can also impact the overall strength.
