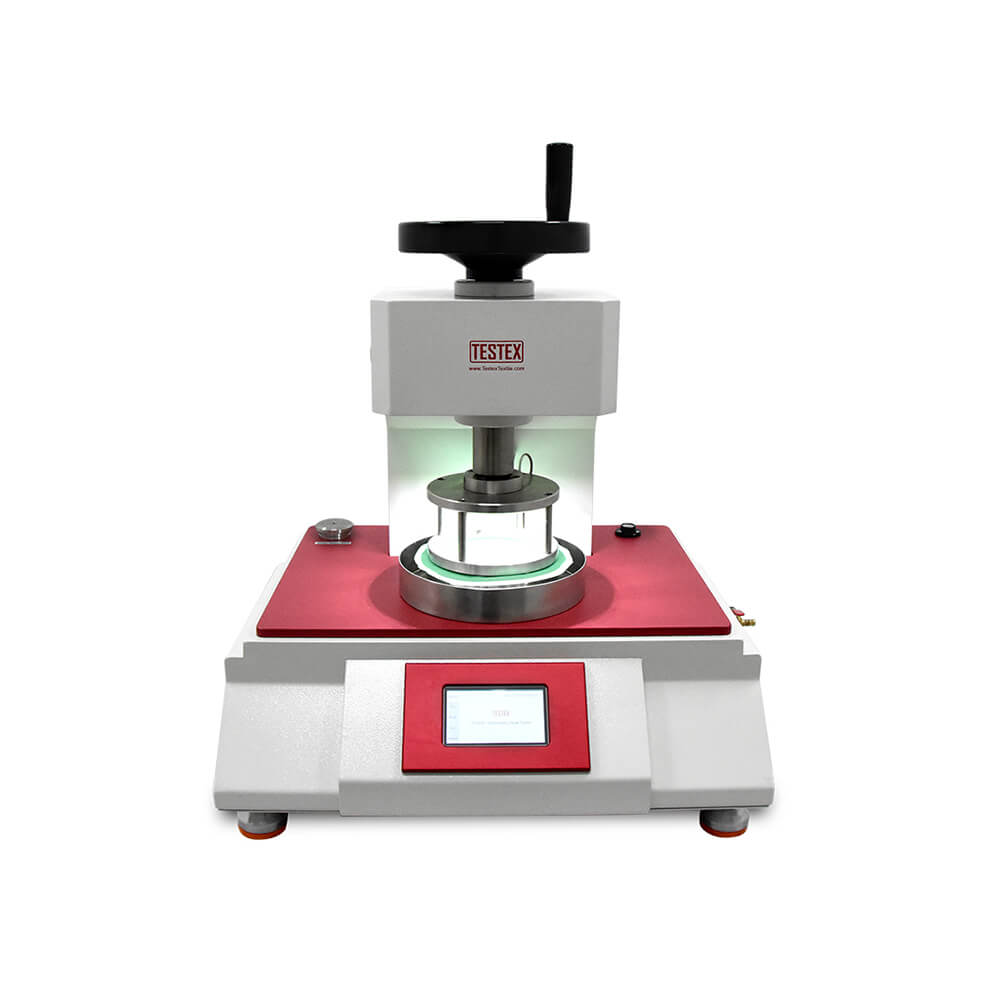

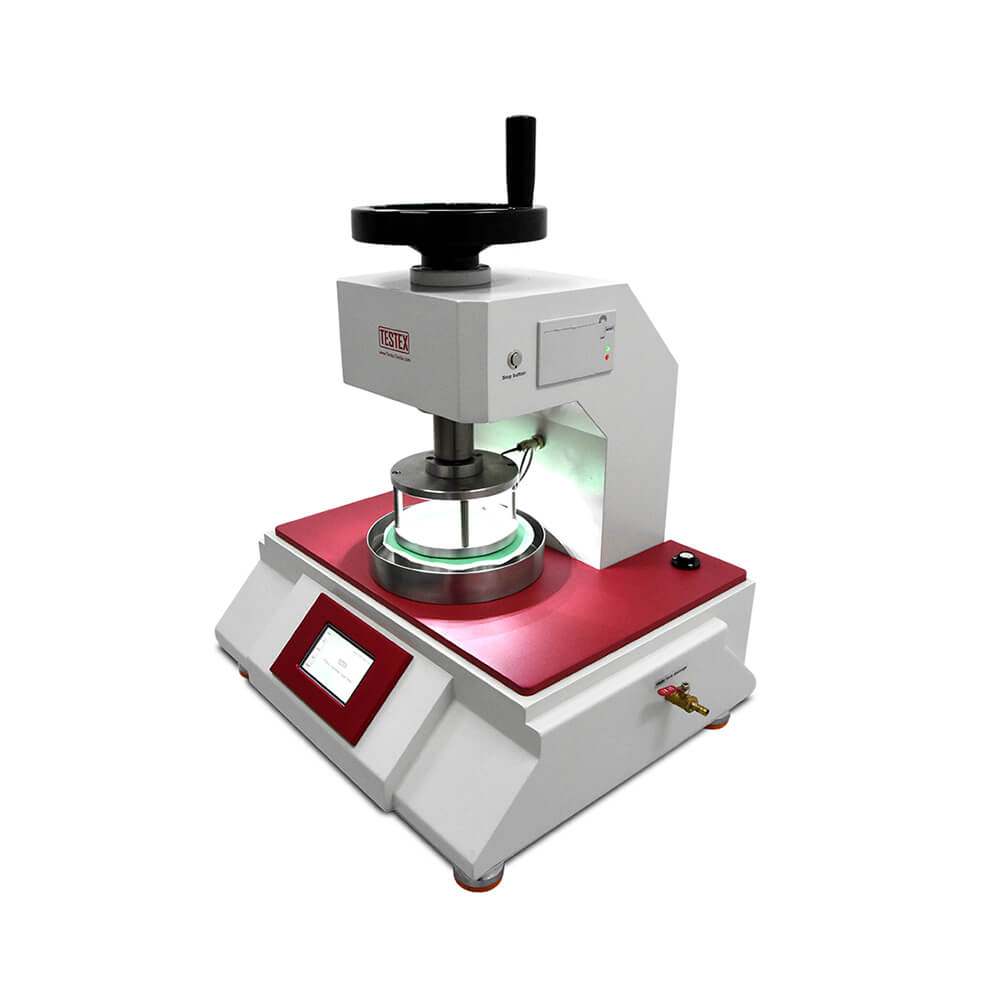

Hydrostatic Head Tester TF163A

Description

Application

Hydrostatic Head Tester TF163A is used for determining the resistance of fabrics (canvas, coated fabrics, cover cloth, rainproof clothing fabrics, and geotextile materials) and films to water penetration under pressure while firmly clamped in the test rig of standard area. Hydrostatic Head Tester TF163A standards include AATCC 127 option 2, ISO 811, GB/T 4744.

This Hydrostatic Head Tester TF163A is for manual operation, and we also have another type of hydrostatic pressure test equipment for automotive operating, click here to know.

Specifications

• Equipped with a LED lamp to observe the test process clearly
• Pressure Range                                          0 ~200 kPa (20 m water column)
• An increasing rate of water pressure          1 ~ 60 kPa/min stepless adjustable
• Units                                                            Pa, kPa, mmHg, cmH₂O

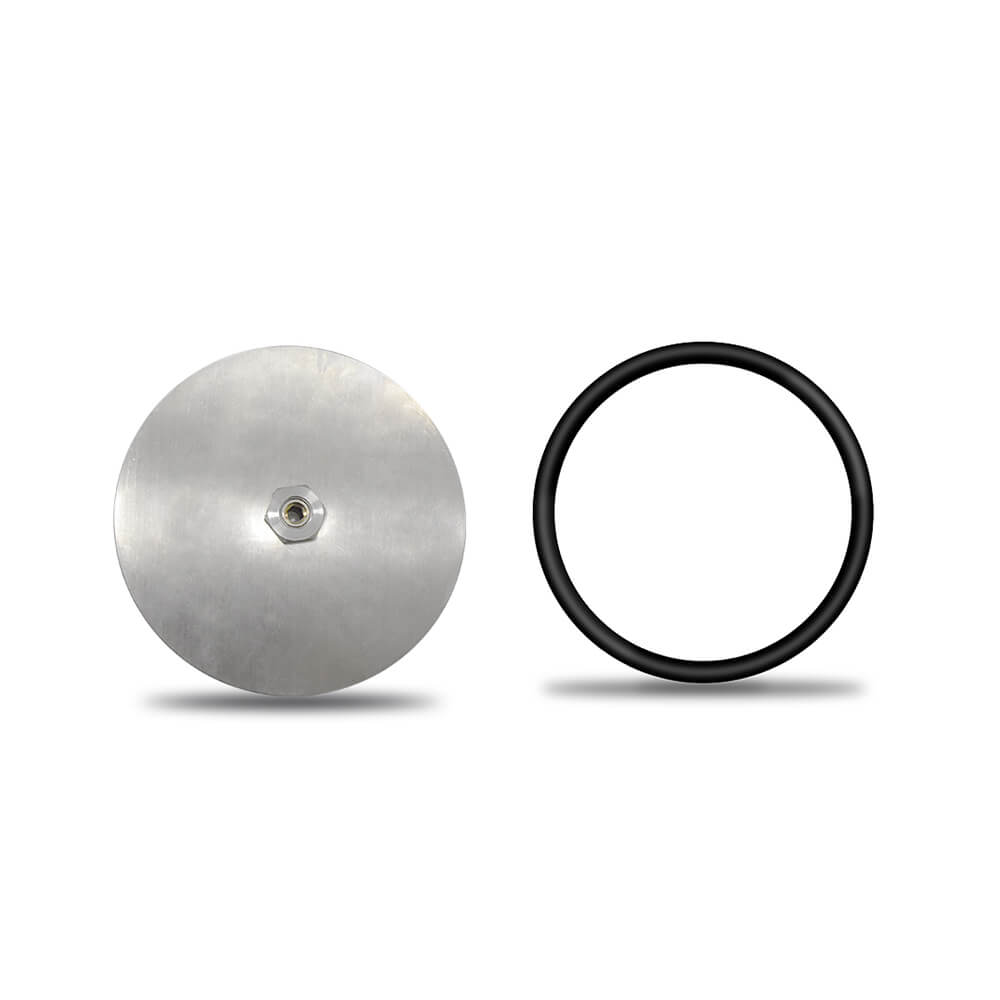

• Standarad Test Head                                  100 cm²

Features

• Large touchscreen control panel to control and display results.
• Wide range of pressure increasing rate and freely adjustable.
• Pressure increasing system is adjusted by the dynamic feedback to prevent overload.
• Built-in thermal compact printer to print results.
• Equipped with an LED lamp to observe the test process clearly.
• 5 built-in test methods:
  a) Pressure-raising mode
  b) Constant-pressure mode
  c) Constant pressure & fixed time mode
  d) Extending-relaxing mode
  e) Water penetration and leakage mode

Weight

Power

Dimension

Standards

Know More about Hydrostatic Head Tester

Definition of hydrostatic pressure

Hydrostatic pressure refers to the resistance encountered when water passes through the fabric. The fabric is subjected to a continuous rise in water pressure until water beads up on the back of the fabric under standard atmospheric pressure. At this point, the measured water pressure value is the hydrostatic pressure. Because the greater the hydrostatic pressure that the fabric can withstand, the better the waterproofness or resistance to seepage.

Hydrostatic pressure units

The hydrostatic pressure can express in N/㎡, Kpa, and water column height m. And the conversion unit is 1m water column height equals 9.82Kpa.

Precaution and Maintenance

1 Before the first operation, the operator must read the Operation Manual carefully and receive special technical training.

2 Sweep the upper chuck lightly before placing the specimen to avoid affecting the test results.

3 The default value of the cylinder is 0.5MPa (can adjust according to the characteristics of the specimen). The maximum error range should not exceed plus or minus 0.2MPa.

4 The inlet pressure should be less than 0.8MPa but the maximum pressure should not exceed 1MPa.

5 Turn off the power and then remove the plug from the power outlet after each test.

6 Emergency stop and restart the instrument in case of malfunction.

7 In order to ensure the normal operation of the machine, the user must regularly check the water level of the test tank. Meanwhile, drain the water out if the machine will keep idle for a long time. You, therefore, need to turn on the drain switch (horizontal direction to the outlet pipe) and by all means, avoid wetting the electrical equipment. After completing the drainage, close the drainage switch (vertically to the outlet pipe) and check that the drainage switch and the pipe mouth must not fall off.

8 Keep the touch screen away from sharp hard objects.

9 No strong electromagnetic interference in the surrounding.

Welcome to TESTEX – a professional textile testing instrument supplier – Hydrostatic Head Tester TF163A is on sale, contact us to get a detailed price quote.
